Rolling Thunder
ME 103: Product Realization: Design and Making
Winter 2023
Skills: CAD, Hands-on Manufacturing (Turning, Milling, Sand Casting, Assembly), Design Process
Objective: Make a product that is meaningful to you in the Stanford Product Realization Lab (PRL). Utilize two manufacturing processes.
Outcome: A muscle roller to use after practices, specifically in reaction to my shoulder surgery I had undertaken a year prior.
Fabrication

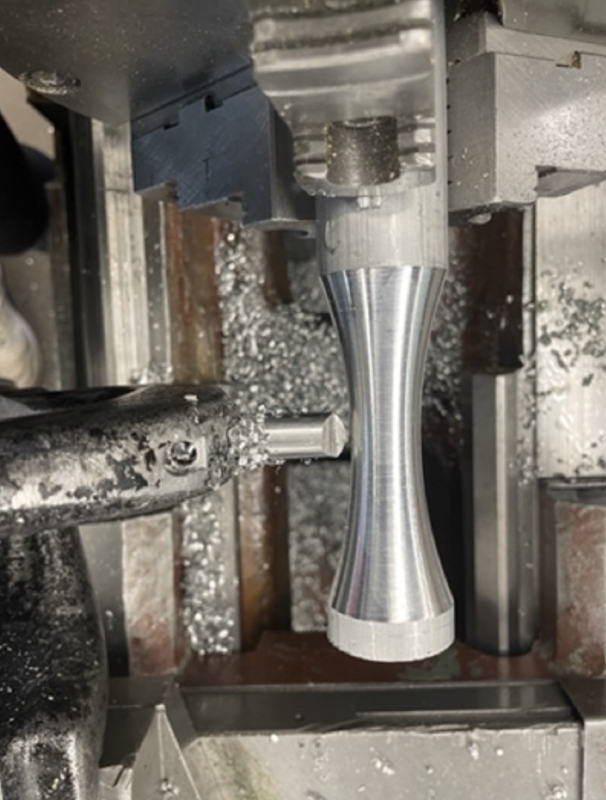

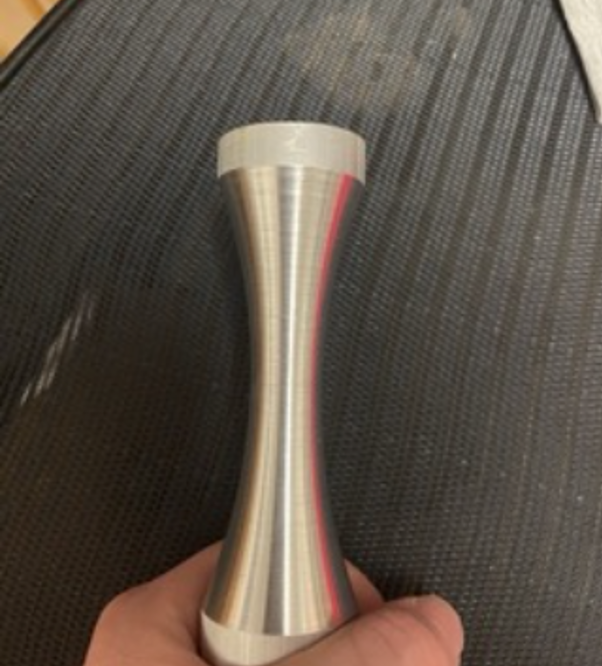

Turned handles:

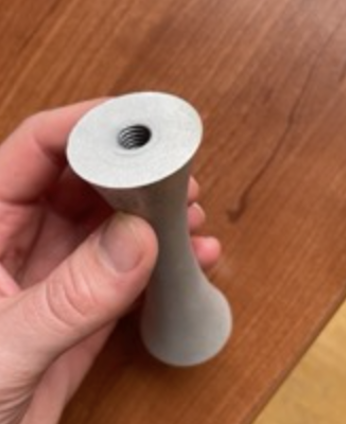

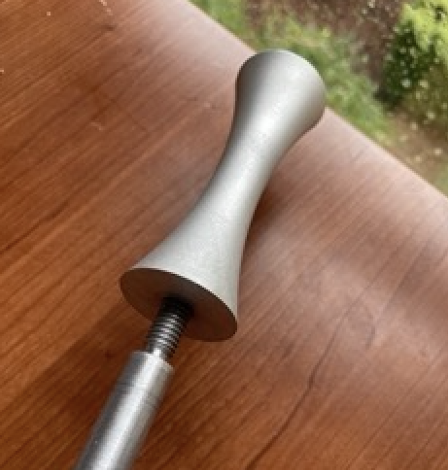

Internally threaded and machined to desired length of 4.0 cm to fit my hand.
Milled/Turned Roller Pieces:

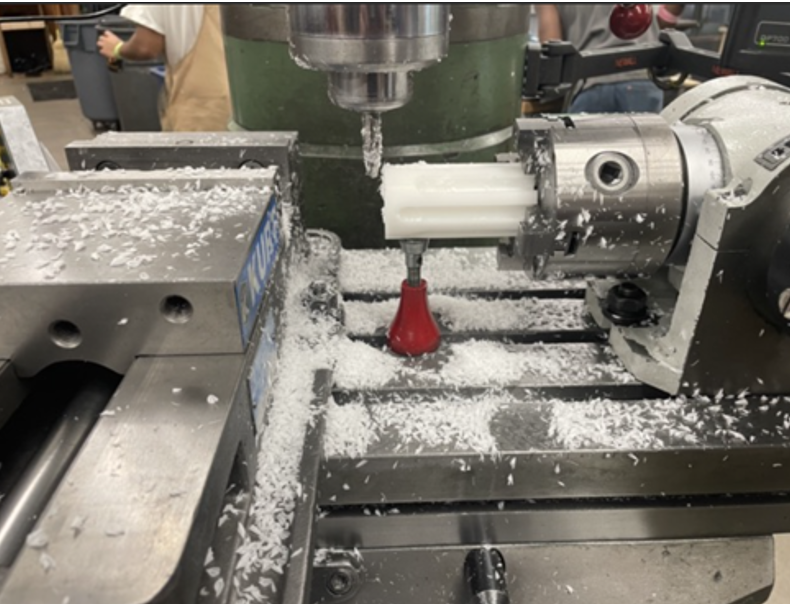

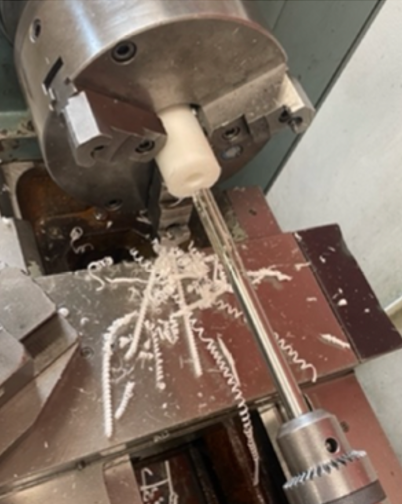

Used a lathe to drill/ream desired hole through the plastic. Used indexing head to grate the grooves around the piece. Sanded the corners for a seamless finish.
Assembly

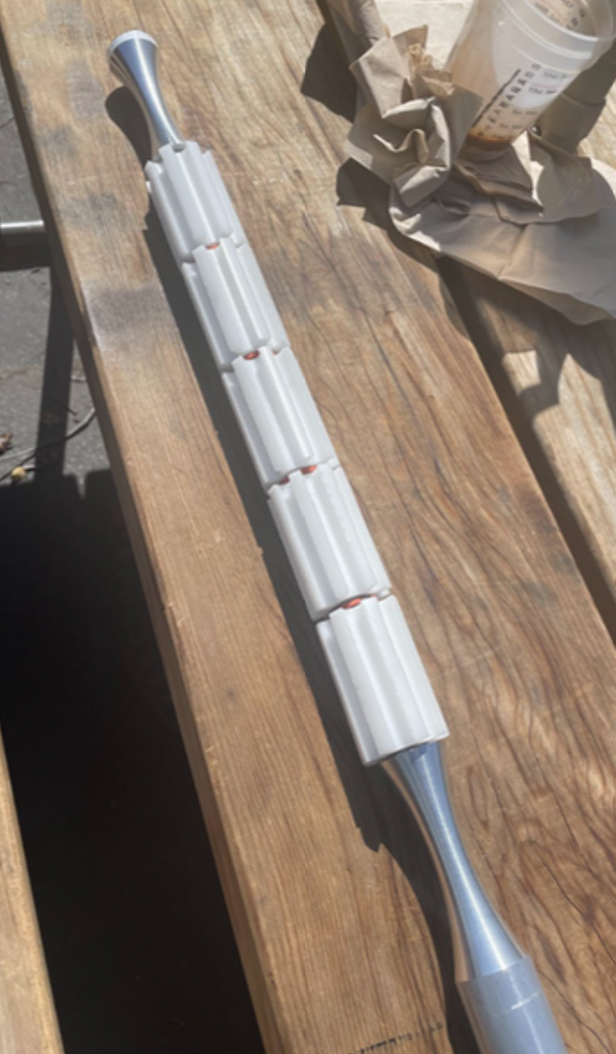

I designed my manufacturing processes in the order for assembly to ensure the upmost precision to fit together in the simplest way with correct tolerances.
